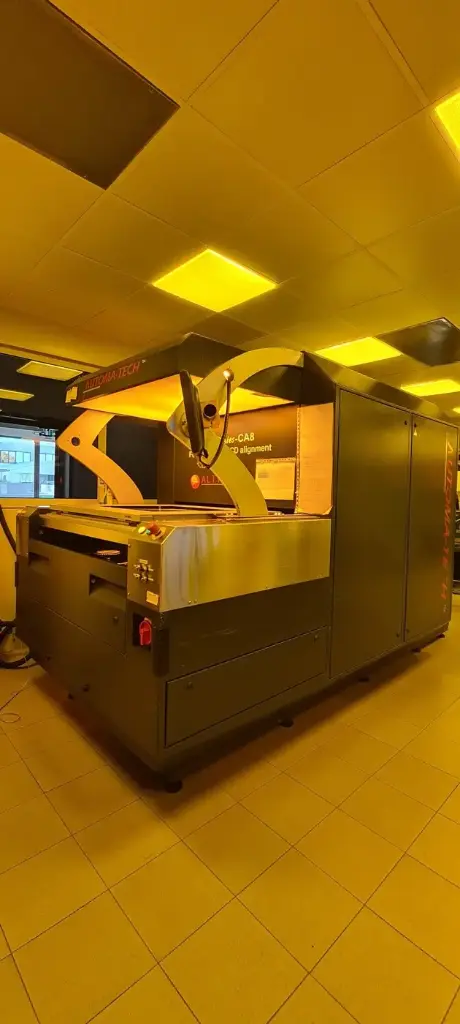

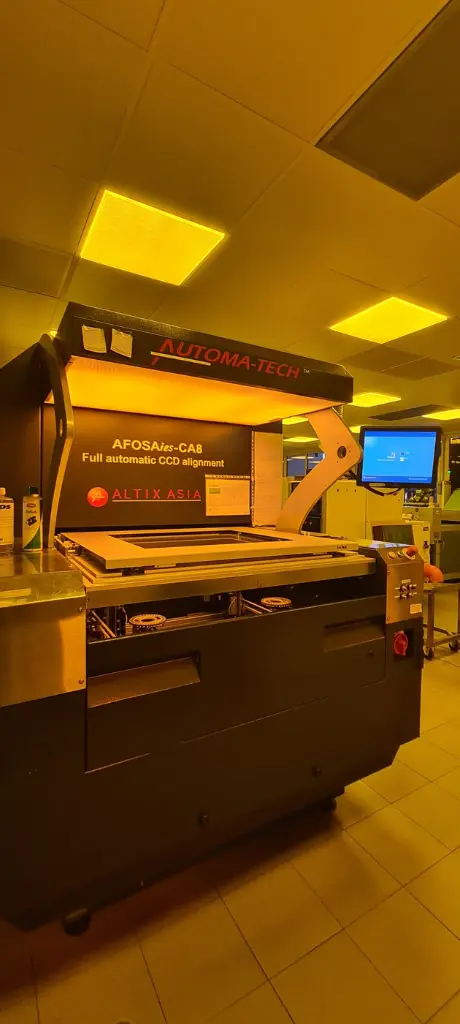

Automatech AFOSA ies ca8
Machine ID: 80830

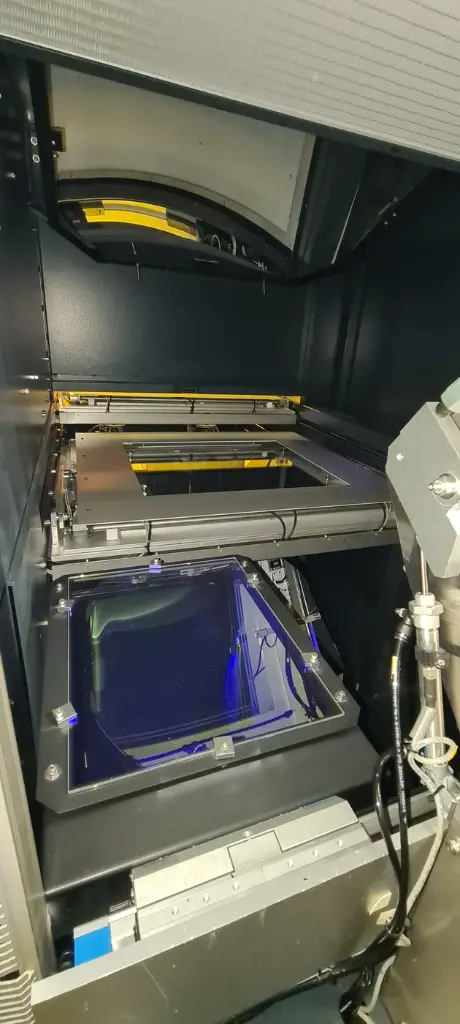

Exposure system w/ glas/glas draws, UV-collimated light source of 8 kW, suitable for multilayers, rigid, flexible, single and/or double sided panels. max. panel size: 610 x 460 mm (24 x 18'') min. panel size: 460 x 305 mm (12 x 7.7''), panel thickness range: 0.05 µm - 4 mm, CCD cameras for auto panel alignment, lamp cooled by air. Overall machine dimensions (L x W x H): 3430 x 1650 x 2160 mm. Electrical connections: 380 V - 50 Hz - 6 kW. Year 2013
