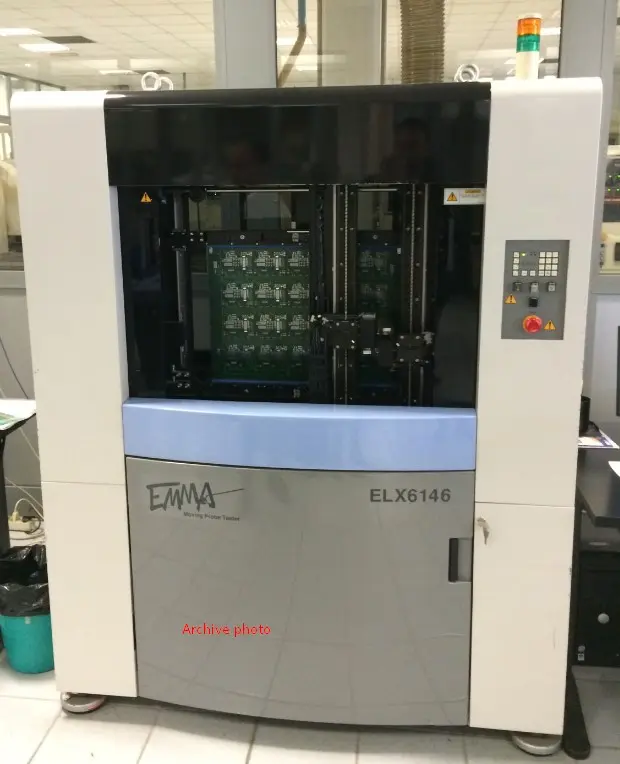

Emma ELX 6146

Probe tester, 2 probes front and 2 rear,  2 CCD camera's  front and 2 rear, min. panel size: 76 x 76 mm, multiframe, max. panel size: 610 x 500 mm, max. panel thickness: 6 mm, manual tension clamp system, overall machine dimensions (L x D x H): 1480 x 731 x 1810 mm, adjustable machine height, repeatability accuracy 10 micron. Electrical requirements:  200/230 V - 50 / 60 Hz - 1.8 KVA. Year: 2004.
