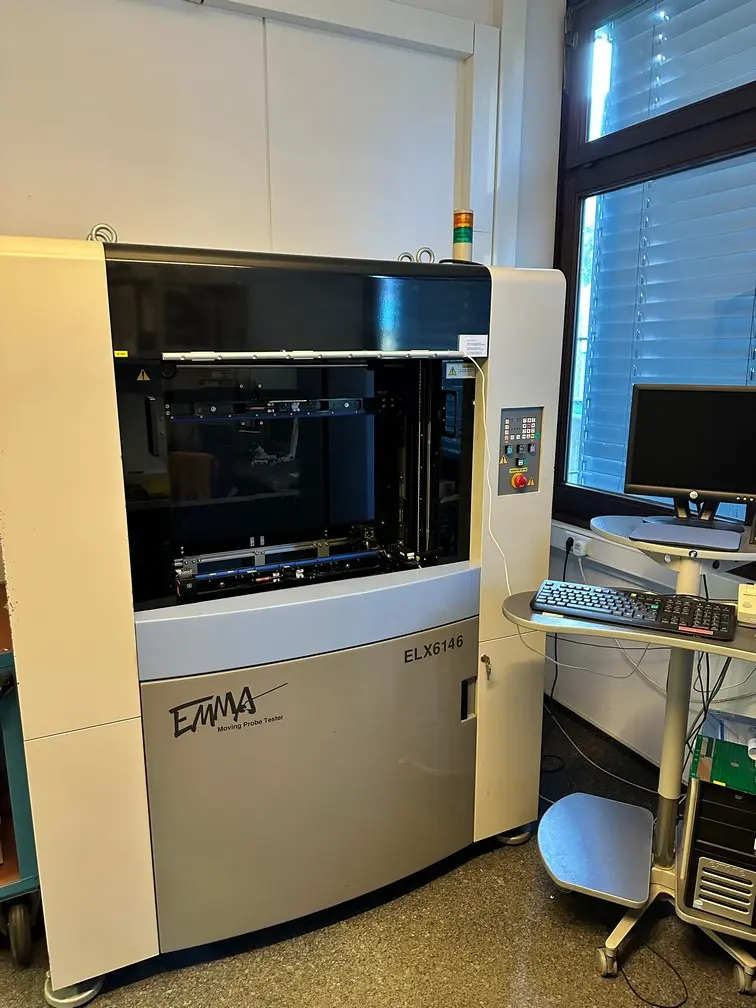

EMMA ELX 6146
Machine ID: 80769

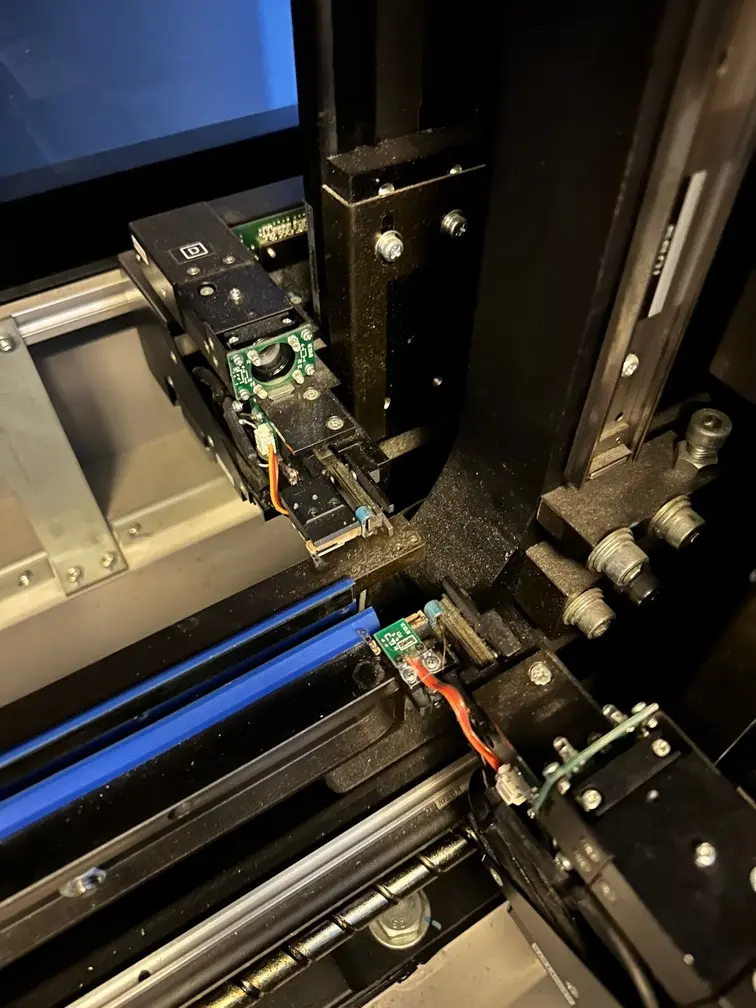

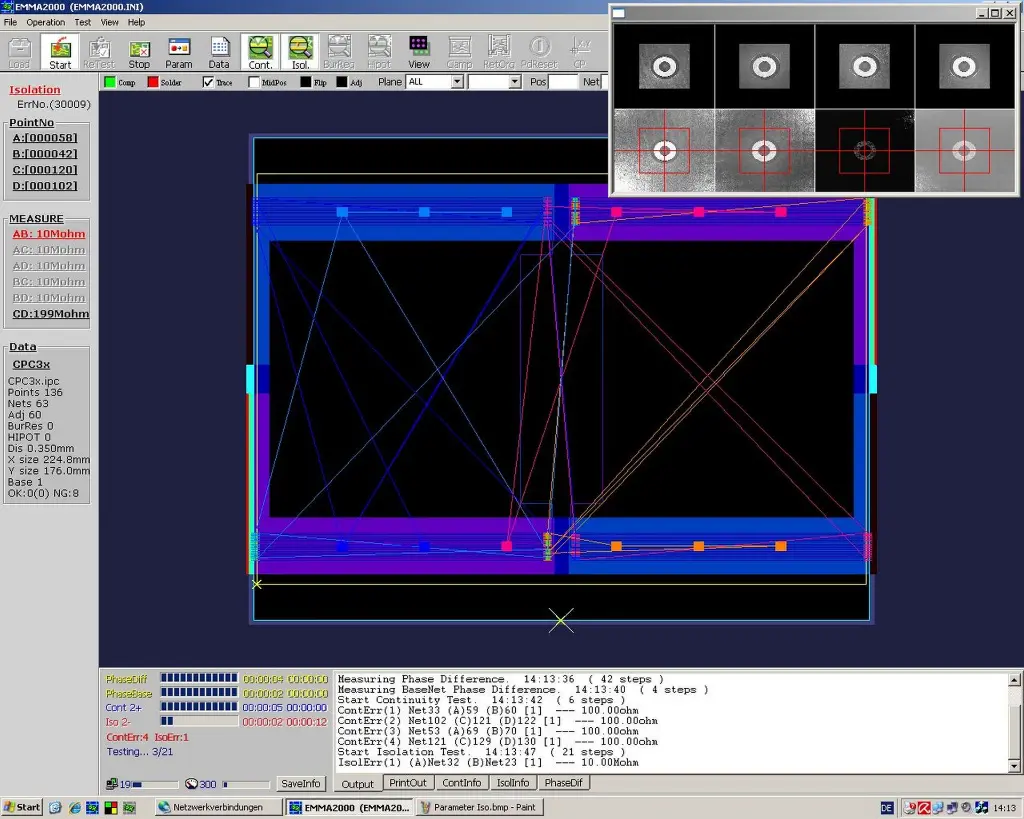

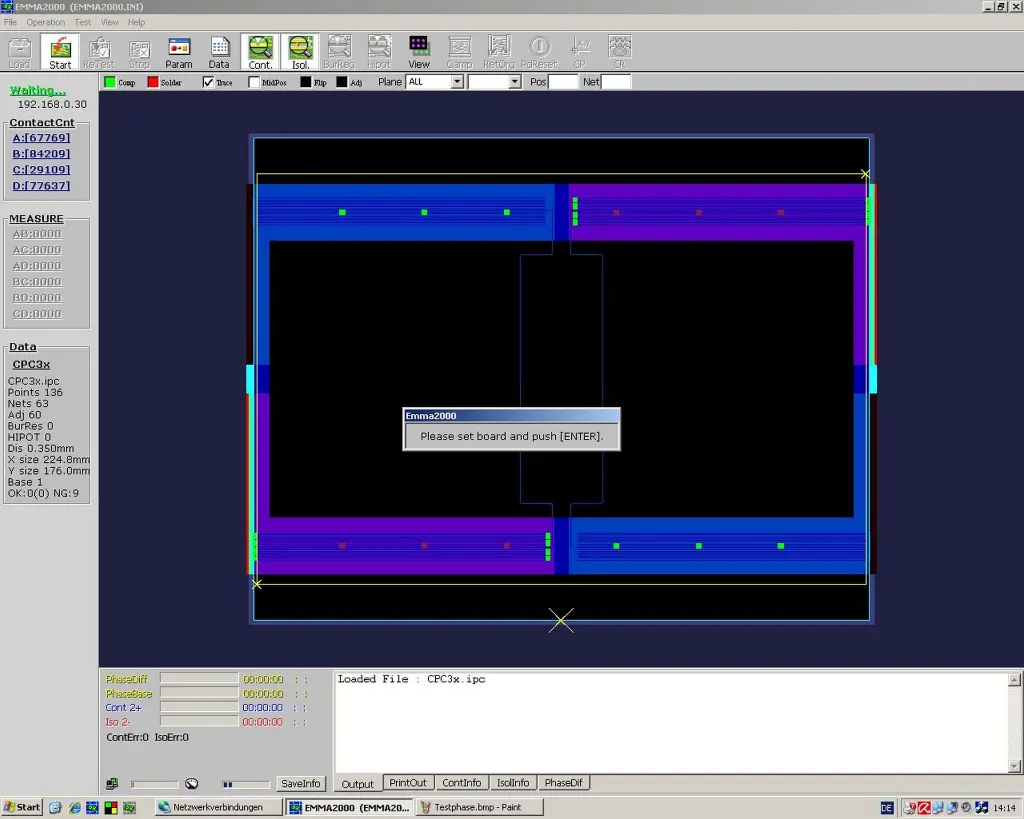

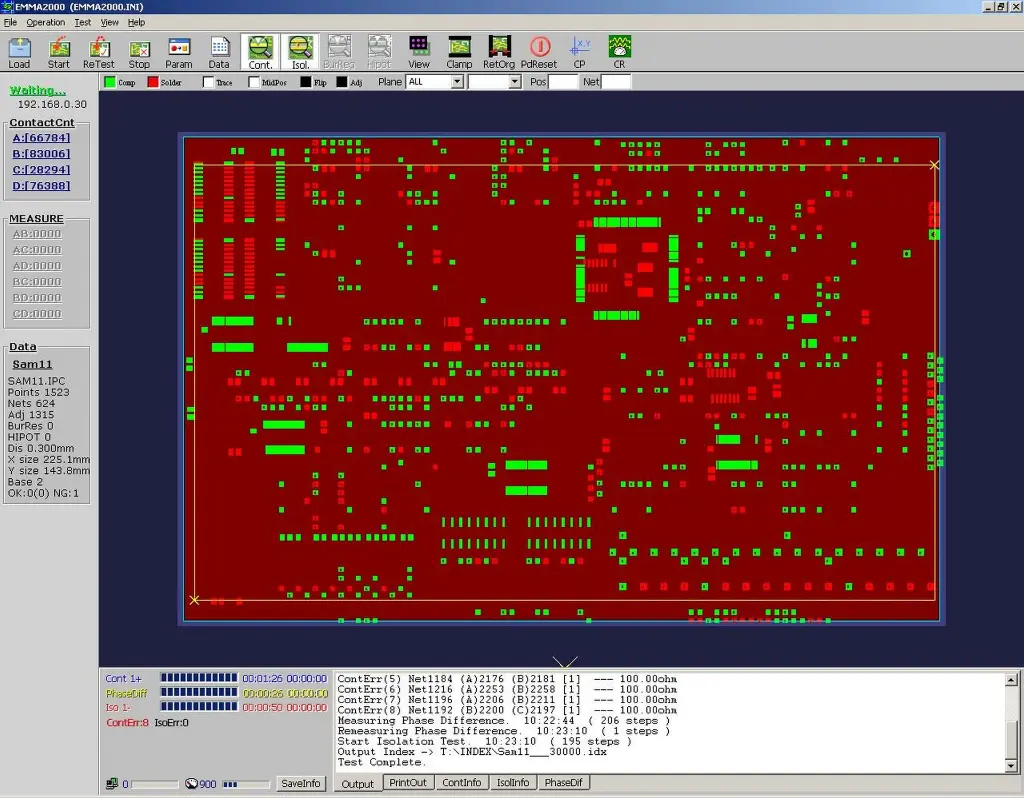

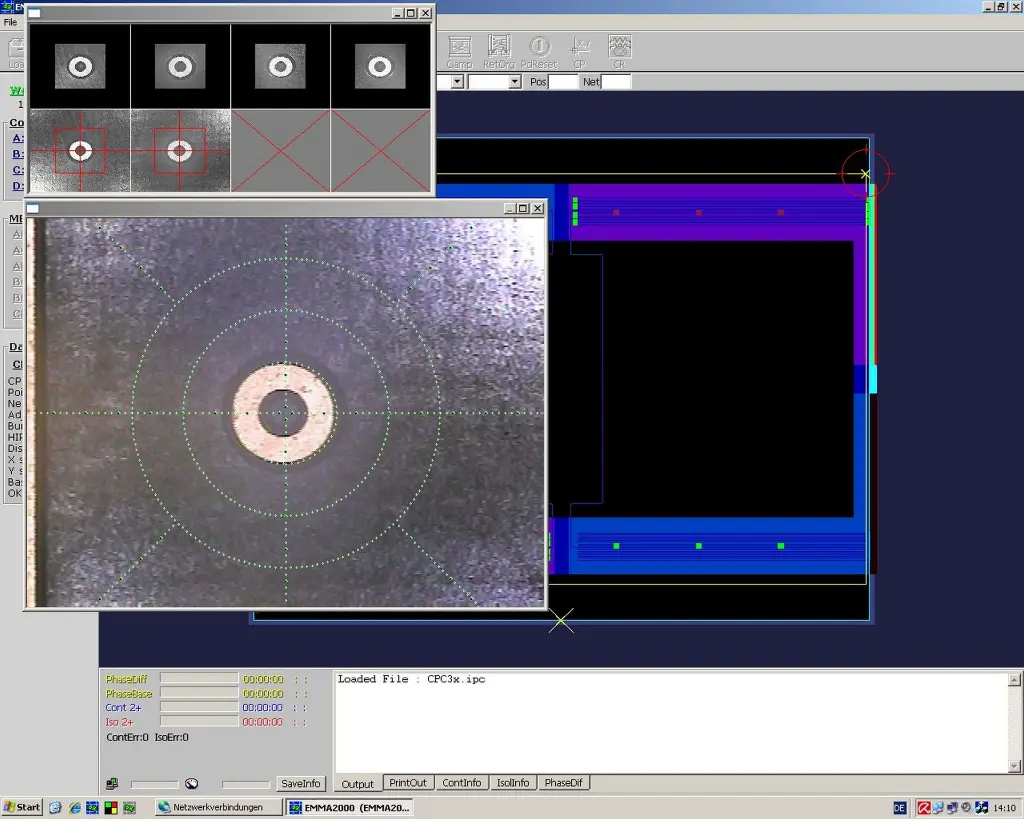

Probe tester, 2 probes front and 2 rear, 2 CCD camera's front and 2 rear, min. panel size: 76 x 76 mm, max. panel size: 610 x 500 mm, max. panel thickness: 6 mm, manual tension clamp system, overall machine dimensions (L x D x H): 1480 x 731 x 1810 mm, adjustable machine height, repeatability accuracy 10 micron, TPG software included, Software version; EMMA 2000 Ver. 12.78 Testpoint Generator Version 4.94, Error viewer Software version 1.58. Electrical requirements: 200/230 V - 50 / 60 Hz - 1.8 KVA. Year: 2005.
